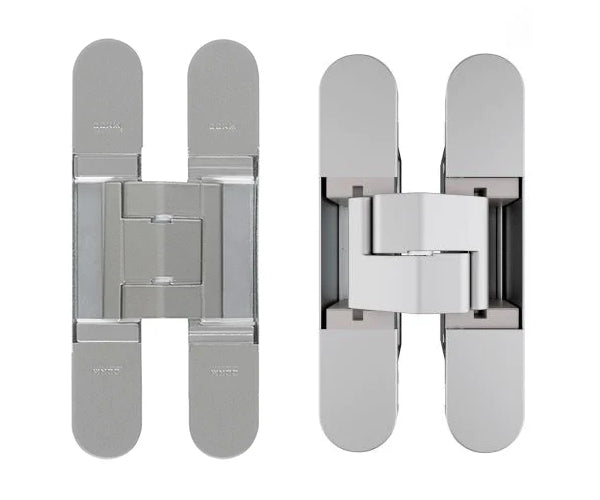

ECLIPSE 3.2 SELF CLOSING
ECLIPSE 3.2 SELF CLOSING
Regular price
$89.99 USD
Regular price
Sale price
$89.99 USD
Unit price
per
Couldn't load pickup availability
Description

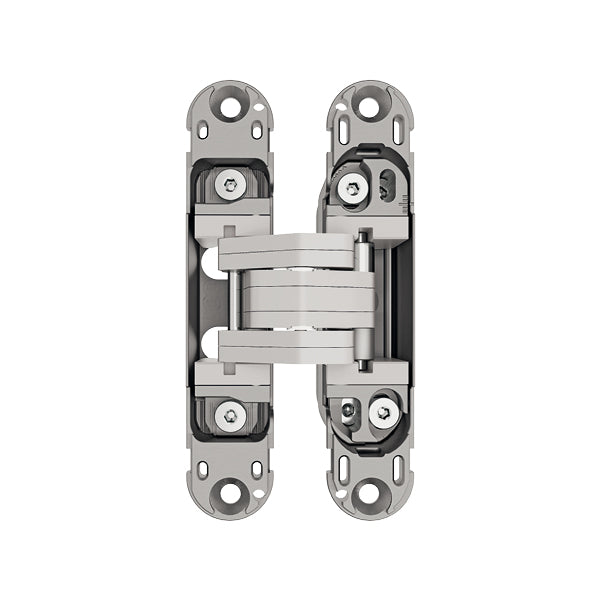

ECLIPSE 3.2 HD SELF
The new concelad hinge with integrated closing system with spring Eclipse 3.2 HD Self is reversible with frame part reduced to 21 mm.
Same millings of the Eclipse 3.2 range plus the milling for the spring body.
PRODUCT FEATURES
-
ADJUSTMENTS
in pressure ±1 mm
vertical ±2 mm
horizontal ±1,5 mm -
HEIGHT
115 mm
-
MAX. EXTENSION
14 mm
-
MATERIAL
zamak / steel
-
CAPACITY
according to the model of hinge where it is coupled with: Eclipse 3.2 or Eclipse 3.2 HD
-
TYPE
for wood
for aluminium

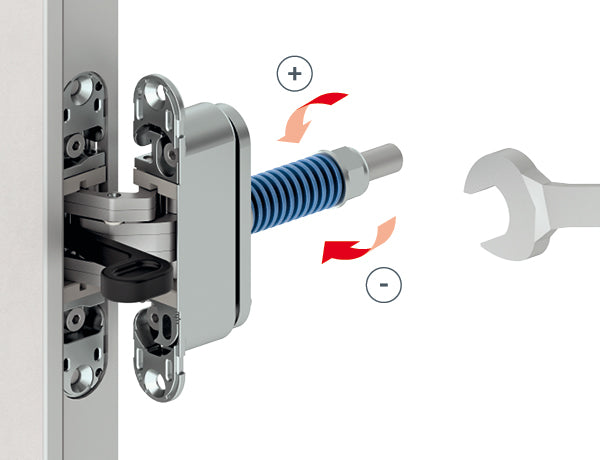

ADJUSTMENTS OF THE CLOSING SYSTEM
To reach a higher closing force, load the spring turning the nut in a counterclockwise using a 17 mm wrench.
To reach a lower closing force, turn the nut in a clockwise to download the spring.
